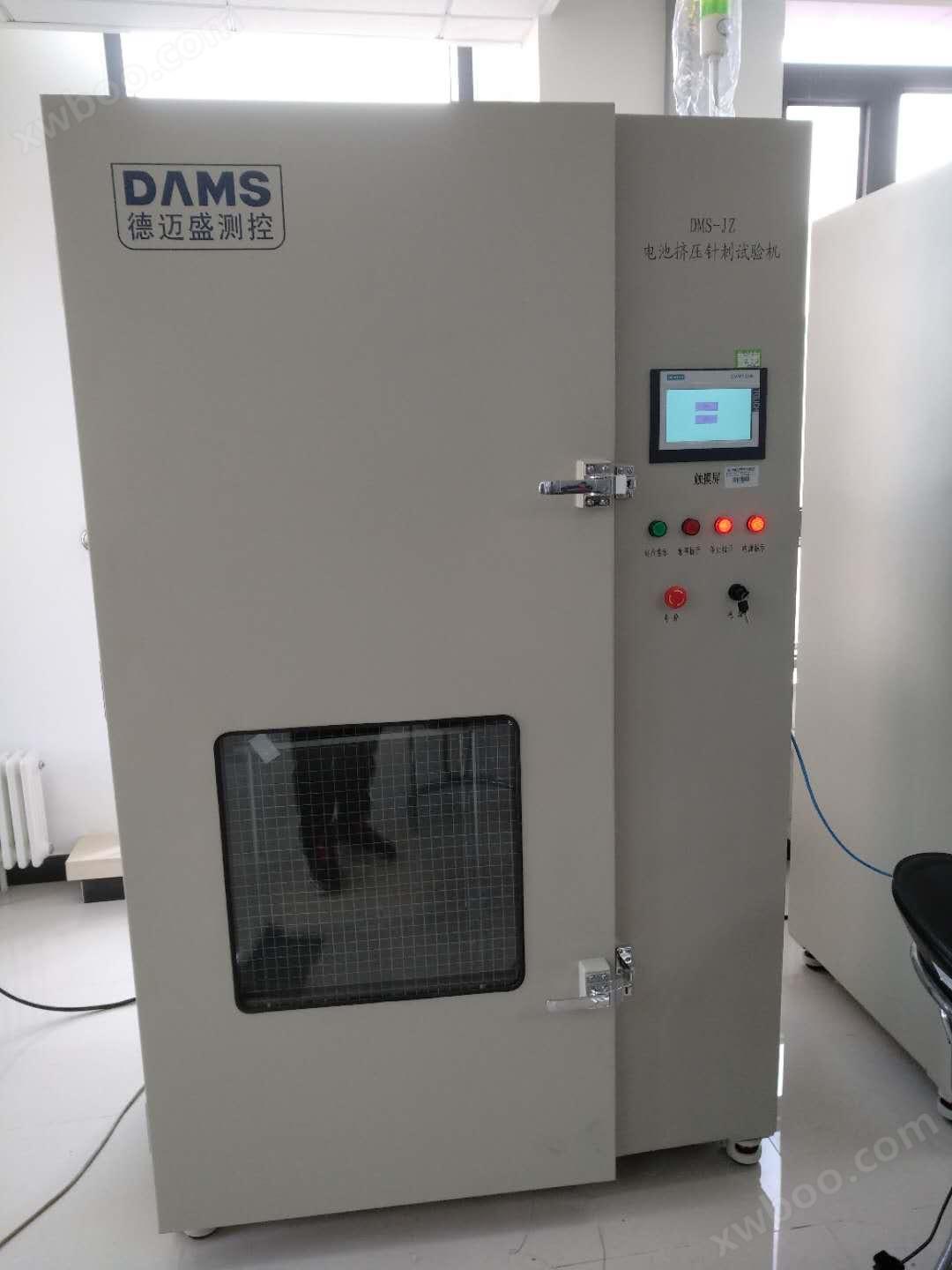

電池針刺擠壓試驗臺
產品型號
更新時間
2024-10-17廠商性質
瀏覽次數
928產品中心
PRODUCT CATEGORY相關產品
RELATED PRODUCTS詳細介紹
二、技術參數?Technical Specification
型號?Model |
DMS-JY8 |
|
結構 Structure |
一體機結構，門上安裝防爆鎖+防爆鏈One machine structure, the door uses explosion-proof lock and explosion-proof chain |
|
最大壓力 Max.pressure |
1KN-20KN（可調，可根據客戶要求定制）Adjustable, customized according to requirements |
活塞直徑Piston diameter |
32mm |
驅動方式Driving method |
液壓Hydraulic pressure |
單位轉換Unit conversion |
Kg/N/Lb |
擠壓/針刺行程Crush/Nail Penetration range |
0~200MM |
擠壓精度?Crush accuracy |
±1% |
針刺測試速度Nail Penetration test speed |
0-40mm/s（可調） |
|
擠壓保持時間 Crush hold time |
0~99小時99分鐘99秒 |
|
控制方式 Control method |
PLC觸摸屏控制系統(7寸觸摸屏)+遠程遙控控制PLC touch screen control system (7-inch touch screen) + remote control |
測試空間?Testing space |
W500xD300xH300 mm |
外形尺寸?Dimension |
W940xD780xH1620 mm |
|
可視窗口 Viewing Window |
390 X 360mm(20mm厚鋼化防爆玻璃+防爆不銹鋼網) 390 X 360mm (20mm thick explosion-proof glass + explosion proof stainless steel mesh) |
電源?Power supply |
AC 380V 50HZ |
功率?Power |
3.0KW |
|
USB接口 USB interface |
帶USB接口，可將測試數據導出 With USB interface, test data can be exported |
|
輔助功能 Accessibility |
防爆泄壓裝置、排煙裝置、防爆鏈Explosion-proof pressure relief device, smoke exhaust device, explosion-proof chain |
|
選購件 Options |
視頻監控系統，溫度、電壓采集系統Video monitoring system, temperature, voltage acquisition system |
